Variscite VAR-SOM-MX7
Description

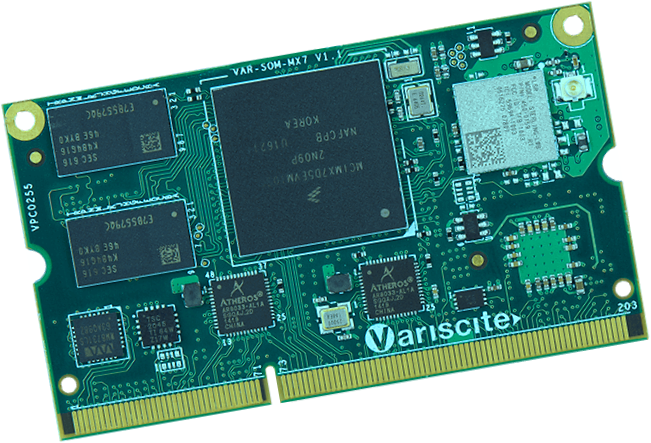

VAR-SOM-MX7 Module
The VAR-SOM-MX7 is a flexible SO-DIMM System on Module (SoM), based on NXP / Freescale i.MX7 family (Dual-core ARM Cortex-A7™) processor. The VAR-SOM-MX7 provides a variety of interfaces and connectivity options, packaged at an optimized power and size.
The VAR-SOM-MX7 highly integrated connectivity includes Wi-Fi, Bluetooth, dual Gigabit Ethernet, dual USB, audio, display with touch panel and serial interfaces.
The system supports industrial embedded applications requiring a wide temperature range.
|
Features
|
|
|
|
|
|
|
|
· Processor |
CPU : ............... |
Dual ARM Cortex™-A7 NXP iMX7 (3,800 DMIPS @1 GHz with dual NEON™ FPU). |
|
· Real-time CPU |
Cortex-M4 : ............ |
ARM Cortex™-M4 @200MHz. |
|
· RAM Memory |
LPDDR2 : ............... |
Up to 2GB RAM. |
|
· FLASH Memory |
FLASH : .......... |
Up 1GB 8-bit NAND + 64GB eMMC or SD. |
|
· USB |
USB : ............... |
1 x USB 2.0 OTG + 1 x USB 2.0 Host. |
|
· Ethernet |
Ethernet : ......... |
Dual 10/100/1000 Mbit/s RGMII. |
|
· Wireless |
Wireless : ......... |
Certified Wi-Fi 802.11 b/g/n + Bluetooth 4.2/BLE. |
|
· CAN |
CAN : .............. |
Up to 2 x CAN Bus. |
|
· Display |
Display : .......... |
24 bit Parallel LCD (4-wire Resistive Touch) ; 1 x EPDC ; 1 x MIPI DSI. |
|
· ADC / DAC |
Converter : .......... |
24-bit sigma delta. |
|
· OS |
Software : ........ |
Yocto Linux operating system. |
Additional features : Camera, Audio, PCIe, SPI, I2C, UART, Keypad.
|
Technical Specifications
|
|
|
|
|
|
· Connector: |
SO-DIMM 204 Pin. |
|
· Power: |
Single power supply 3.3V. |
|
· Operating temperature: |
-20° C - +85° C. |
Module Vendor
Variscite, Israel.
